Large Floor Plan

UK-based technical drawing with 20+ years experience

Large Floor Plan
A clear floor plan designed for larger or more complex layouts.

Best for
Larger homes
Complex renovations
Multiple rooms or zones
Bigger footprints

What you get
One clear floor plan
Clean layout with room arrangement
Suitable for builders or trades
East to share and understand
Supplied as a PDF

Includes 1 round of revisions. Additional revisions are charged at £35 per revision.

How it works

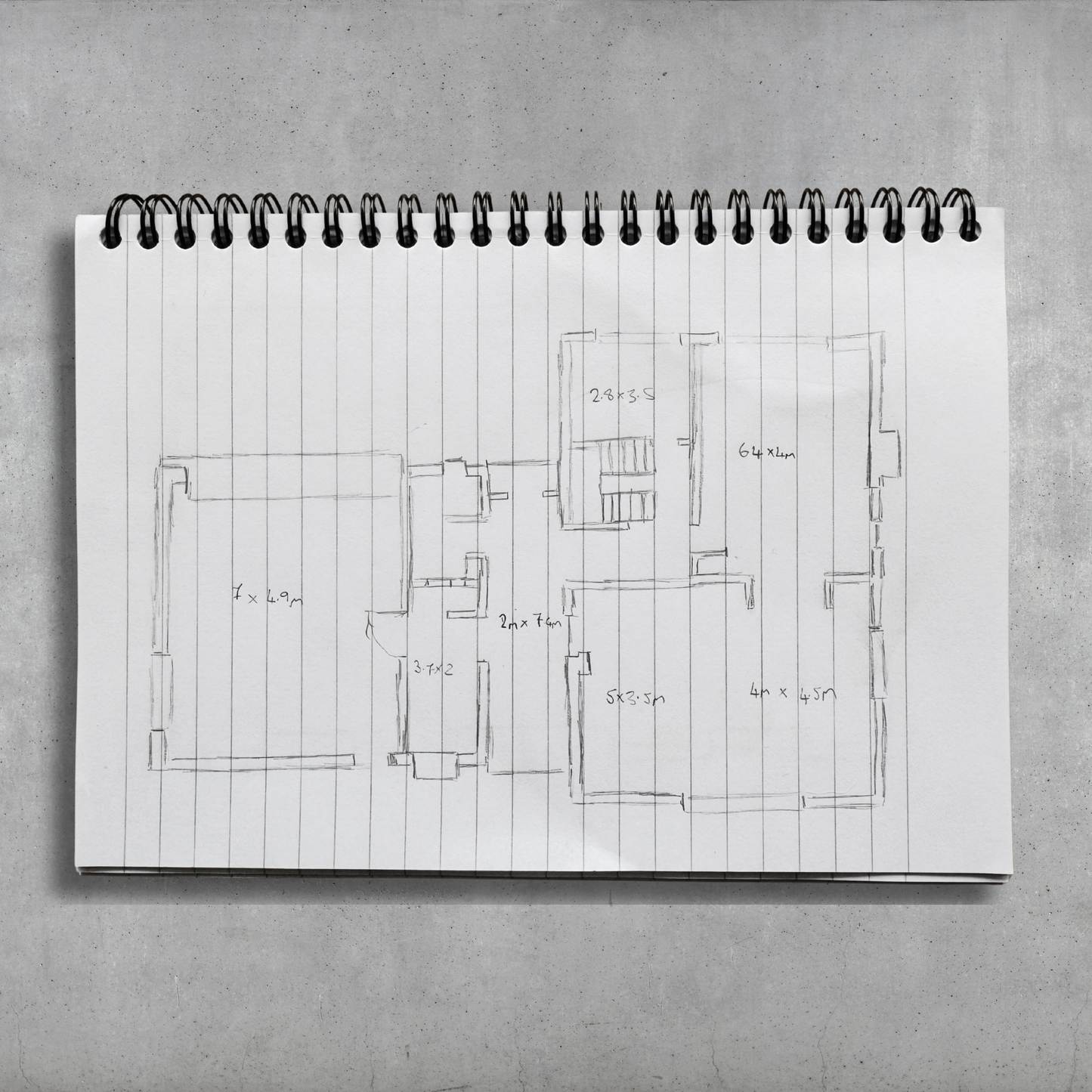

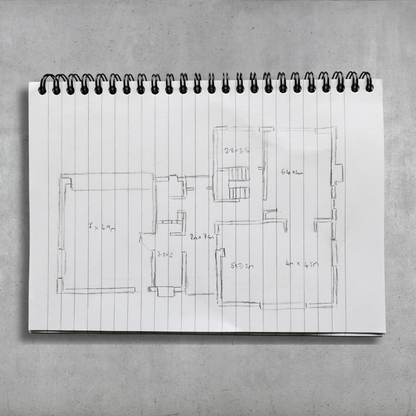

1. Upload your sketch or layout (photos optional but helpful)
2. Add dimensions or notes (optional)

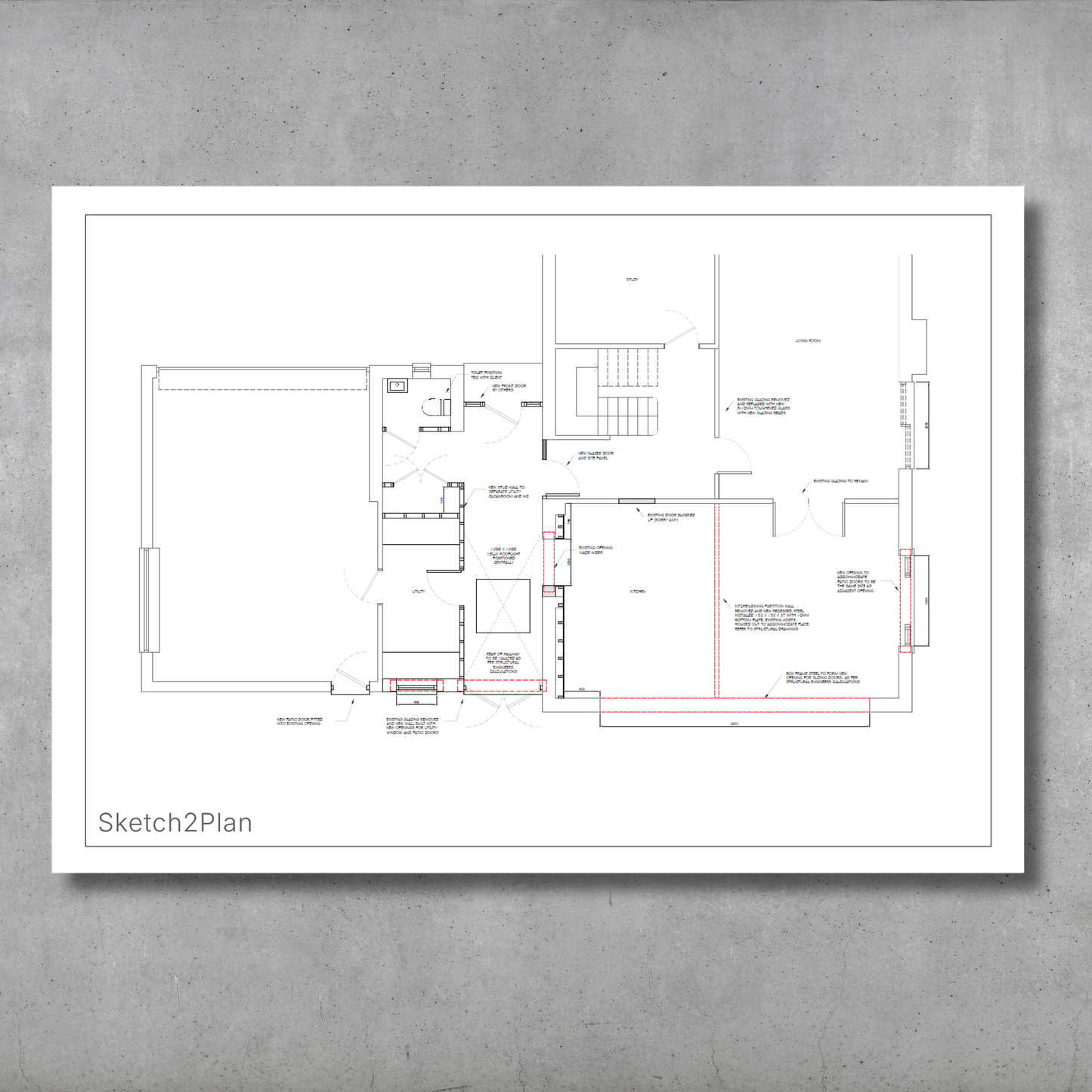

3. We redraw it into a clear floor plan
4. You receive a clean, usable PDF drawing

Good to know
If you’re unsure whether your project fits this option, use the chat and we will point you in the right direction.

Disclaimer Drawings are produced at concept level to communicate layout and intent and are not suitable for planning or building control submissions.
